2011 Harley-Davidson FLSTSE2 CVO Softail Convertible® Key Features
- Polished stainless steel shift linkage
- Smoked front turn signal lenses with amber bulbs
- Chrome Accessories
- Clutch line and brake line clamps
- Derby and timer covers with engine turn inserts
- Headlight trim ring, nacelle and back plate
- Front sliders
- Wheel spacers
- Handlebar risers and caps
- Shifter, rear brake lever and forward control mounts
- Coil cover and voltage regulator
- Rear brake master cylinder cover
- Switch housings
- Upper belt guard and debris deflector
- Sprocket bolt covers
- Valve stem caps
- Front and rear axle nut covers
- Pivot shaft covers
- Black high-torque 1.4kW starter
- High-performance clutch with hydraulic actuation
- Harley-Davidson® Smart Security System with siren
- Smoked front turn signal lenses with amber bulbs
- Chrome Accessories
- Clutch line and brake line clamps
- Derby and timer covers with engine turn inserts
- Headlight trim ring, nacelle and back plate
- Front sliders
- Wheel spacers
- Handlebar risers and caps
- Shifter, rear brake lever and forward control mounts
- Coil cover and voltage regulator
- Rear brake master cylinder cover
- Switch housings
- Upper belt guard and debris deflector
- Sprocket bolt covers
- Valve stem caps
- Front and rear axle nut covers
- Pivot shaft covers
- Black high-torque 1.4kW starter
- High-performance clutch with hydraulic actuation
- Harley-Davidson® Smart Security System with siren
2011 Harley-Davidson FLSTSE2 CVO Softail Convertible® USA Specifications
U.S. MSRP - $29,599
DIMENSIONS
Length 94.9 in. (2410 mm)
Overall Width 35.8 in. (909 mm)
Overall Height 50.8 in. (1290 mm)
Seat Height:
Laden2 24.4 in. (620 mm)
Unladen 26.2 in. (665 mm)
Ground Clearance 4.3 in. (109 mm)
Rake (steering head) 32°
Fork Angle 31°
Trail 5.8 in. (147 mm)
Wheelbase 64.2 in. (1631 mm)
Tires (Dunlop® Harley-Davidson Series, radial blackwall front and rear):
Front – D407 130/70R18 63V
Rear – D407 200/50R18 76V
Fuel Capacity 5.0 gal. (18.9 L) (warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 3.0 qts. (2.8 L)
Transmission Capacity 1.0 qts.
Primary Chain
Case Capacity3 1.0 qts.
Weight:
As Shipped 754 lbs. (342.0 kg)
In Running Order 781 lbs. (354.3 kg)
Gross Vehicle Weight Rating 1160 lbs. (526.2 kg)
Gross Axle Weight Rating:
Front 430 lbs. (195.0 kg)
Rear 730 lbs. (331.1 kg)
ENGINE
Engine4 Air-cooled, Twin Cam 110B™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 4 in. x 4.38 in. (101.6 mm x 111.3 mm)
Displacement 110 cu. in. (1803 cc)
Compression Ratio 9.15:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Ventilator Intake with Chrome cover,
Fiberglass media, washable, exposed element with rain sock
Lubrication System Pressurized, dry-sump
DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/66 ratio
Clutch Hydraulically actuated, 9-plate, wet,
with high-performance spring
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
1st 9.311
2nd 6.454
3rd 4.793
4th 3.882
5th 3.307
6th 2.79
CHASSIS
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; MIG welded; color coordinated with vehicle
Swingarm Mild steel tube sections, forged junctions; MIG welded; color coordinated with vehicle
Front Forks 41.3 mm telescopic, chrome upper fork-slider covers
Rear Shocks Hidden, horizontal-mounted, coil-over
Wheels5: Chrome Stinger™ Cast Aluminum
Front 18 in. x 3.5 in. (457 mm x 89 mm)
Rear 18 in. x 6 in. (457 mm x 152 mm)
Brakes:
Caliper Type 4-piston fixed front; 2-piston floating rear
Rotor Type (diameter x width): Single floating Stinger Waved Rotor
Front 11.5 in. x .2 in. (292 mm x 5 mm)
Rear 11.5 in. x .23 in. (292 mm x 5 mm)
Anti-lock Braking System (option) Standard
Suspension Travel:
Front Wheel 5.1 in. (130 mm)
Rear Wheel 3.3 in. (84 mm)
PERFORMANCE
Engine Torque6 (per SAE J1349):
North America 110 ft. lbs. @ 3000 RPM (149 Nm @ 3000 RPM)
Lean Angle:
Right 26°
Left 26°
Fuel Economy7
(EPA urban/highway test)
34/50 mpg (6.90/4.70 L/100 km)
ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 RPM, 489W max power @ 13V)
Starting 1.4 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation): Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam, Rear Tail/Stop Lights 8W/28W self-canceling, Front Signal Lights 8W/28W self-canceling, Indicator Lamps - High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system8, 6-speed, low fuel warning, cruise control, ABS
COLOR OPTIONS
Custom Colors :
Scarlet Red Pearl and Dark Slate Pearl with Metal Grind Graphics
Midnight Sky and Candy Cobalt with Blue Ice Graphics

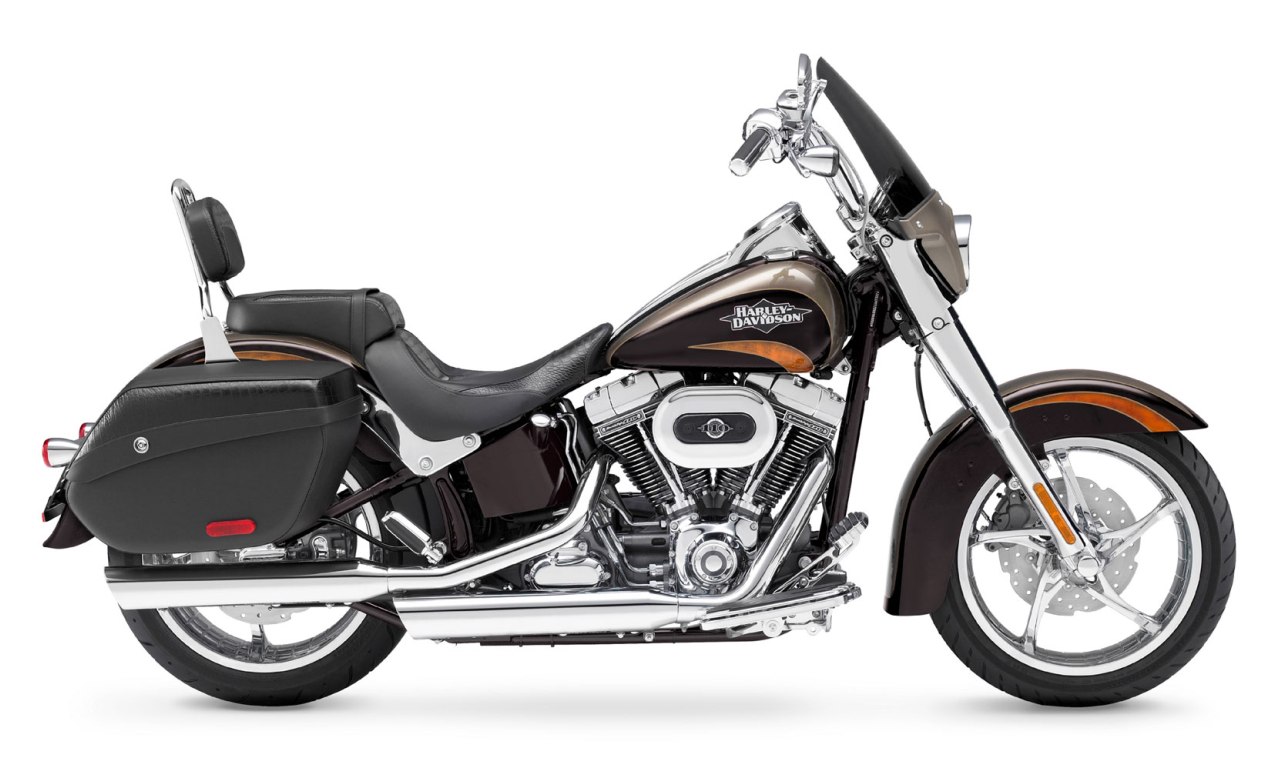

Maple Metallic and Roman Gold with Burnished Copper Graphics
WARRANTY
Warranty9 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7) kg operator weight.
3 Primary case oil fill is 45 oz. or as needed to fill to bottom of diaphragm spring.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance may vary by country and region.
7 Estimated from fuel economy tests on a sample motorcycle from the
corresponding family conducted by Harley-Davidson under ideal laboratory
conditions. Not all motorcycle models undergo fuel economy testing. Fuel
economy and mileage may vary among motorcycle models within a family. Your
mileage may vary depending on your personal riding habits, weather conditions,
trip length, vehicle condition and vehicle configuration and other conditions.
Break-in mileage may vary.
8 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
9 See motorcycle owner’s manual for complete details.
