New 2010 Suzuki Boulevard M109R - Australia Specifications

New 2010 Suzuki Boulevard M109R - Australia Specifications
after explanation of global specifications and specifications for the following canada specification, spec for the New 2010 Suzuki Boulevard M109R - Australia Specifications that there may be additions or reductions structure of different components or license for the 2010 Suzuki Boulevard M109R - Australia Specifications though fixed mass producers from the same manufacturer, but in terms of the agreement, each country has different rules to accumulate his

New 2010 Suzuki Boulevard M109R - Australia Specifications

Engine
2 cylinder, 4-stroke, liquid cooled, DOHC, 54-degree, V-twin

Starter
Electric

Transmission
5-speed constant mesh

Front Suspension
Inverted telescopic, coil spring, oil damped

Rear Suspension
Link type, coil spring, oil damped

Front Brakes
Disc brake, twin

Rear Brakes
Disc brake

Seat Height
705mm

Wheelbase
1,710mm

Length
2,480mm

Width
875mm

Height
1,185mm

Fuel Capacity
19.5 litres

Warranty
2 year unlimited kilometre

Colors
Pearl Black or Cherry Red

2010-Suzuki-BoulevardM109R-australia


Additional Specifications

Ground Clearance
130mm

Engine

Bore
112mm

Stroke
90.5mm

Compression Ratio
10.5:1

Fuel System
Fuel injection

Air Cleaner
Non-woven fabric element

Lubrication System
Semi-Dry sump

Idle Speed
900 +/- 100 r/min



Drive Train

Clutch
Wet multi-plate type

Gearshift Pattern
1-down, 4-up

Primary Reduction
1.647 (56/34)

Gear Ratios Low
2.188 (35/16)

Gear Ratios 2nd
1.400 (28/20)

Gear Ratios 3rd
1.038 (27/26)

Gear Ratios 4th
0.828 (24/29)

Gear Ratios Top
0.686 (24/35)

Final Reduction Ratio
2.824 (18/17 x 32/12)

Drive System
Shaft Drive



Chassis

Front Fork Stroke
130mm

Rear Wheel Travel
118mm

Caster
31 degrees 15'

Trail
124mm

Steering Angle
37 degrees (right & left)

Turning Radius
3.3m

Front Tyre
130/70R18M/C 63V, tubeless

Rear Tyre
240/40R18M/C 79V, tubeless

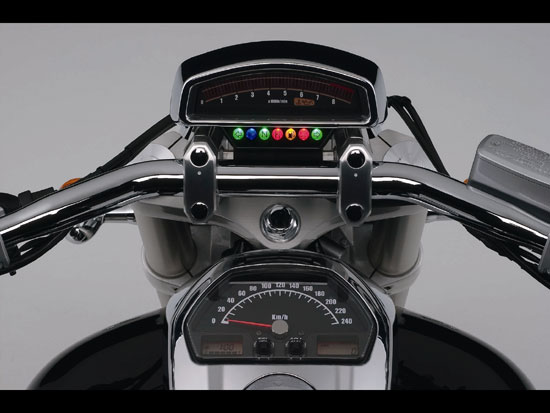

2010-Suzuki-BoulevardM109R-spedo


Electrical

Ignition Type
Electronic ignition (Transistorised)

Ignition Timing
5 degrees B.T.D.C. at 900 r/min

Spark Plug
NGK CR8EK or DENSO U24ETR

Battery
12V 64.8 kC (18 Ah)/10 HR

Generator
Three-phase A.C. generator

MainFuse
30A

Fuse
10/10/10/15/15/15A

Headlight
12V 60/55W (H4)

Position Light
12V 5W

Brake Light / Taillight
LED

Front Turn Signal Light
12V 21W

Rear Turn Signal Light
12V 21W

License Plate Light
12V 5W

Speedometer Light
LED

Tachometer Light
LED

Neutral Indicator Light
LED

High Beam Indicator Light
LED

Turn Signal Indicator Light
LED

Coolant Temperature / Oil Pressure Indicator Light
LED

Fuel Level Indicator Light
LED

Flindicator Light
LED



Capacities

Engine Oil / Oil Change
3400ml

Filter Change
3600ml

Overhaul
4700ml

Final Gear Oil
200 - 220 ml

Coolant
2.7 L
