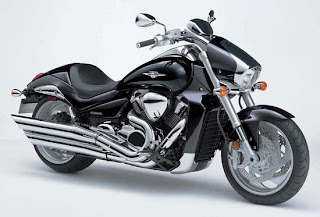

New 2010 Suzuki Boulevard M109R

New 2010 Suzuki Boulevard M109R
New 2010 Suzuki Boulevard M109R

The Suzuki Boulevard M109R is the most powerful cruiser Suzuki has ever produced. The all-new liquid-cooled 1,783cc engine featuring four valves per cylinder and SDTV digital fuel injection gives you all the power you need, when you need it.

This monster packs the largest engine pistons of any production car or bike on the planet. Each of the huge 112mm forged aluminium-alloy pistons use short skirts and cutaway sides to reduce friction and provide the rider with raw, unstoppable muscle.

The Boulevard means business in every way - from its purpose-built chassis and high-tensile steel frame, created to handle its enormous torque, through to its GSX-R1000 styled front brake system for unmatched stopping power. Adding hi-tech brains to its brawn are a handlebar-mounted instrument cluster with digital tachometer, LED taillight and tank-mounted analog speedometer. The classic look is slick yet muscular.

The wide, stretched-out 19-litre fuel tank and massively beefy 240-section rear tyre (the widest ever used on a Suzuki motorcycle) sit seamlessly within its long, sleek flowing lines. The innovative styling is enhanced even further by the lustrous deep chrome finish.

Key Features

- A streamlined headlight cover carrying a unique trapezoidal shaped multi reflector H4 halogen headlight and a maintenance free LED tail light built into the tailsection

- 1,783cc, liquid-cooled, DOHC, V-Twin engine is designed to produce a massive tractable power and responsive torque.

- Huge 112mm forged aluminum-alloy pistons. These are one of the largest reciprocating gasoline engine pistons being used in any production passenger car or motorcycle, while featuring race-proven design to reduce friction and inertial mass.

- Suzuki Dual Throttle Valve (SDTV) fuel injection system produces smooth throttle response even at low engine rpm.

- Suzuki Advanced Sump System (SASS), a compact dry-sump lubrication system, designed for reduced engine height, a lower crankshaft position and lower center of gravity.

- The race-proven brake system came straight off the sportbike, including radial-mount opposed-4-piston front brake calipers and a dual-piston rear brake caliper.

- Inverted front forks featuring race-proven cartridge internals with 46mm stanchion tubes.

- Cast aluminum-alloy swingarm works with a progressive linkage and a single rear shock absorber; adjustable spring preload to suit rider and passenger weight.

- The widest, massive 240mm rear tyre, ever used on a Suzuki motorcycle.

- A sporty solo-seat cover that can be quickly swapped for the included passenger seat.

- Handlebar-mounted instrument cluster, including a digital tachometer and LED indicator lights.

- Tank-mounted analogue speedometer and LCD odometer, dual tripmeters, fuel gauge and clock.


Engine Features

1783cc, 8-valve DOHC, 54-degree, liquid-cooled, fuel injected V-twin engine designed for strong throttle response and quick acceleration

A compact dry sump lubrication system SASS (Suzuki Advanced Sump System) provides reduced engine height, a lower crankshaft position and lower center of gravity


An Idle Speed Control (ISC) system improves cold starting and stabilizes engine idle speed in various conditions


Dual spark plug per cylinder ignition system is controlled by the powerful 32 bit ECM for improved combustion efficiency and reduced exhaust emissions

Each bore is lined with Suzuki's race proven SCEM (Suzuki Composite Electrochemical Material) for optimum heat transfer, tighter piston-to-cylinder clearances and reduced weight

Electronic fuel injection system features the Suzuki Dual Throttle Valve system (SDTV) with 56mm throttle bodies - maintains optimum air velocity for smooth low- to mid-range throttle response

Five speed transmission features carefully selected gear ratios for comfortable cruising in a variety of riding situations

Massive 112mm bore and 90.5mm stroke utilizing huge 112mm forged aluminum alloy pistons with short skirts, and cut away sides riding on chrome moly steel connecting rods

The 2-into-1-into-2 stainless steel chromed exhaust system features Suzuki's digitally controlled SET (Suzuki Exhaust Tuning) system for optimum engine performance and powerful V-twin sound

Three piece airbox uses dual intakes with 9.5 liters of internal volume working through a pleated fabric air cleaner element

Unique two-stage cam drive system creates a compact cylinder head design, reduces overall engine height and creates a lower center of gravity

Chassis Features

A cast aluminum alloy swingarm works with a progressive shock linkage and a preload adjustable single rear shock delivering 4.66 inches of wheel travel working through a shaft drive system

A handlebar mounted digital tachometer and LED indicator lights flow nicely with the tank mounted analog speedometer and LCD odometer, dual tripmeters, fuel gauge and clock

A sleek wide fuel tank with 19.5 L (4.3 Imp gal) fuel capacity that flows into integrated side covers, a comfortable low seat and stylish radiator cowl.

Front brake system includes radial mounted four piston front calipers and 310mm front brake rotors. Rear brake system includes a dual piston caliper and 275mm rear disc

High-tensile double cradle steel frame is built to comfortably handle all the power and torque while delivering agile handling and a plush smooth ride

Inverted cartridge forks with 46mm stanchion tubes proved an aggressive front end look with 5.12 inches of wheel travel

Single seat cover is standard equipment and emphasizes the beautiful flowing lines of the M109R

Spiral spoke cast aluminum alloy wheels measure a 3.50 x 18 inch up front and a massive 8.50 x 18 inch rear tire wearing a huge 240mm rear Dunlop radial tire
