2011 Harley-Davidson FXDWG Dyna-Wide-Glide

2011 Harley-Davidson FXDWG Dyna-Wide-Glide Model Highlights

NEW Paint color options, Black powder-coated powertrain with chrome covers, Chrome, "Tommy Gun" 2-1-2 collector exhaust with dual mufflers, 4.7-gallon Street Bob®-style fuel tank, raised at the front .75-inch, 40-spoke laced steel wheels with black rims, 21-inch front wheel, Front and rear suspension lowered one inch, 34 degree fork angle, Wide polished aluminum triple clamps, Chopped rear fender with chrome supports, Low solo seat with separate passenger pillion, Stainless steel internally-wired handlebar on four-inch black riser, Wrinkle-black battery box and fender struts, Black mirrors and headlight bucket, Black one-piece wire sissy bar, Dual red LED lights combine the stop/turn/tail functions, Side-mounted license plate, Low-profile tank console with electronic speedometer

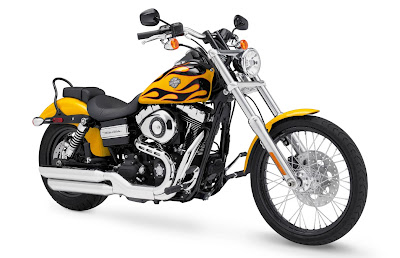

2011-Harley-Davidson-FXDWG-Dyna-Wide-Glide


2011 Harley-Davidson FXDWG Dyna-Wide-Glide Key Features

Re-introduced in 2010, the Dyna® Wide Glide® motorcycle is all about attitude. Its tough, dark styling and retro feel, along with a retro price tag, give riders the confidence to sit low and stretch out.
The Wide Glide® is raw and true to its roots with a chopped rear fender, black rims on 40-spoke laced wheels, a black tank console, "Tommy Gun" exhaust, beefy, raked-out forks and a swept back sissy bar. Throw in the old-school Flame paint scheme and heads are sure to turn.

But, this bike is about more than just looks. The lowered suspension, internally-wired handlebar with 4-inch riser and forward foot controls offer an awesome ride. And the truly attractive sticker price provides amazing value.

Rubber-mounted Twin Cam 96™ V-Twin engine with Electronic Sequential Port Fuel Injection (ESPFI), rated at 92 ft. lbs. of torque, 6-speed Cruise Drive® transmission, Exposed under-seat battery box, Exposed rear coil-over shock absorbers, Forward-mounted rider footpegs with brake and shift levers, Optional Harley-Davidson® Smart Security System with hands-free security fob

2011-Harley-Davidson-FXDWGDynaWideGlide


2011 Harley-Davidson FXDWG Dyna-Wide-Glide - USA Specifications

U.S. MSRP - Vivid Black $14,499. Two-Tones $15,194 (with Flames)

DIMENSIONS

Length 94.0 in. (2388 mm), Overall Width 37.2 in. (945 mm), Overall Height 47.8 in. (1214 mm), Seat Height: Laden2 25.5 in. (648 mm), Unladen 26.7 in. (678 mm), Ground Clearance 4.2 in. (107 mm), Rake (steering head) 34°, Fork Angle 36°, Trail 5.2 in. (132 mm), Wheelbase 68.3 in. (1735 mm), Tires (Dunlop® Harley-Davidson Series, bias blackwall front and rear): Front – GT502 F 80/90-21 54V, Rear – GT502 180/60B17 75V, Fuel Capacity 4.7 gal. (17.8 L), (warning light at approximately 0.9 gal.), Oil Capacity (w/filter) 3.0 qts. (2.8 L), Transmission Capacity 1.0 qts., Primary Chain
, Case Capacity3 1.0 qts., Weight: As Shipped 647 lbs. (293.5 kg), In Running Order 665 lbs. (301.6 kg), Gross Vehicle Weight Rating 1085 lbs. (492.2 kg), Gross Axle Weight Rating:, Front 390 lbs. (176.9 kg), Rear 695 lbs. (315.3 kg)

ENGINE

Engine4 Air-cooled, Twin Cam 96™, Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder, Bore x Stroke 3.75 in. x 4.38 in. (95.3 mm x 111.3 mm), Displacement 96 cu. in. (1584 cc), Compression Ratio 9.2:1, Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI), Air Cleaner Fiberglass Media, washable, Lubrication System Pressurized, dry-sump

DRIVETRAIN

Primary Drive Chain, 34/46 ratio, Final Drive Belt, 32/66 ratio, Clutch Multi-plate, wet, Transmission 6-Speed Cruise Drive®, U.S. Gear Ratios (overall): 1st 9.311, 2nd 6.454, 3rd 4.793, 4th 3.882, 5th 3.307, 6th 2.79

CHASSIS

Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded, Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded, Front Forks 49 mm with polished aluminum fork triple clamp and dual-rate springs, Rear Shocks Coil-over shock,Wheels5: Black, Laced Steel Front 21 in. x 2.15 in. (533 mm x 55 mm), Rear 17 in. x 4.5 in. (432 mm x 114 mm), Brakes: Caliper Type 4-piston front, and 2-piston torque-free floating rear, Rotor Type (diameter x width) : Patented, uniform expansion rotors (floating, front only), Front (floating) 11.8 in. x .2 in. (300 mm x 5 mm), Rear 11.5 in. x .23 in. (292 mm x 6 mm), Suspension Travel: Front Wheel 5 in. (127 mm), Rear Wheel 3.1 in. (78.74 mm)

PERFORMANCE

Engine Torque6 (per SAE J1349): North America 92 ft. lbs. @ 3000 RPM (125 Nm @ 3000 RPM), Lean Angle: Right 28.4°, Left 31.9°, Fuel Economy7, (EPA urban/highway test) 35/54 mpg (6.70/4.40 L/100 km)

ELECTRIC

Battery (per Battery Council International Rating), Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca, Charging Three-phase, 40-amp system (493W @ 13.5V, 2000 RPM, 540W max power @ 13.5V), Starting 1.2 kW electric with solenoid shift starter motor engagement, Lights (as per country regulation): Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam, Rear Turn Signal Lights Running Lamp: 9W Brake/Turn Lamp: 43W, Rear Brake Light8 Tail Lamp: 2.3W Brake Lamp: 4.4W, Indicator Lamps - High beam, directional light bar, neutral, low oil pressure, engine diagnostics,, turn signals, security system8 (optional), 6-speed, low fuel warnings, Electric Power Outlet Standard

COLOR OPTIONS

Solids: Vivid Black
Two-Tones: Vivid Black Flame, Chrome Yellow Flame, Sedona Orange Flame

WARRANTY

Warranty9 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
1 Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty. 2 Measurement reflects 180 lb. (81.7 kg) operator weight. 3 Primary case oil fill is 32 oz. or as needed to fill to bottom of diaphragm. 4 Recommended 91 octane or higher fuel (R+M)/2. 5 Standard and optional wheels may vary by country and region. 6 Values shown are nominal. Performance may vary by country and region. 7 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary. 8 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren. 9 See motorcycle owner’s manual for complete details.
